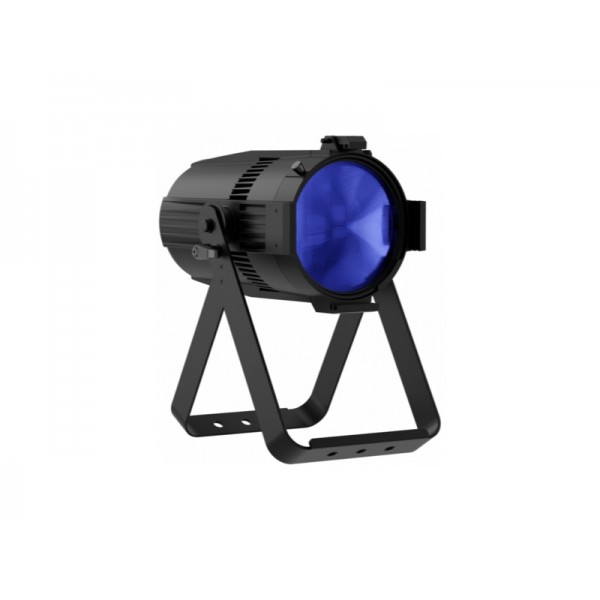

PAR LED ECLIPSEPARFC Full RGB+WW 150 W 24 ° PROLIGHTS (PAR LED ECLIPSEPARFC Full RGB+WW 150 W 24 ° PROLIGHTS)

Reference: ML-CR-166FC

You will get free shipping when cart value exceed of €700.00 Tax excl. with the carrier all, to a delivery address in France.
acute

We are sorry. This product is temporarily out of stock.

This means that, if you include this product in your cart, this product won't be deliverable before the missing product has been received in our supplies.

Nevertheless, concerning the rest of your order, we will send you immediately the products that we have.

  Shipping Policy

Shipping within 24 to 48 hours then delivery within 24 to 72 hours (if the product is In Stock)

  Return policy

Return under conditions


EclPar FC LED PAR projector See special page

The EclPar range is a series of single-source LED projectors with quiet operation and optical accessories giving them great flexibility.
The EclPar LED PARs feature a highly flexible 16-bit dimming curve, DMX RDM control, and PWM frequency adjustment to avoid flicker effects on camera.
Accessories include interchangeable optics, flux shutters, filter holder, honeycomb diffuser, flight case for 6 projectors and accessories.
These are powerful, compact spotlights with great lighting qualities, perfect for use in theater, TV or events.
The EclPar are available in RGB+warm white, cool white 5,600 K ( ML166DY ), warm white 3,200 K ( ML166TU ) and UV 365 nm ( ML166UV ).

SOURCE
- Mono source LED RGB+Warm White 150 W
- CRI : > 95 (@ 3200 K) / > 92 (@ 5600 K)
- R9 : > 98 (@ 3200 K) / > 96 (@ 5600 K)
- TLCI : > 85 (@ 5600 K)
- TM-30-15Rf/Rg : 92/105 (@ 3200 K) / 90/106 (@ 5600 K)
- Luminous flux: 5,983 lumens (24 °) / 5,774 lumens (73 °)
- Illuminance:
1,040 lux @ 5 m @ 24 ° / 166 lux @ 5 m @ 73 °
- LED lifetime > 50,000 h

OPTICAL SYSTEM
- Aperture angle: 24 and 73 ° lenses (included)
- Other optional lens: 40 °
- Lens diameter: 163 mm
- Fresnel-type lenses

COLORS
- RGB+warm white color mixing
- White presets from 2,800 to 6,500 K
- Amber Shift function for tungsten emulation (via menu or DXM)
- Green / Magenta level correction
- Virtual linear CTO applicable to any color
- Linear transfer of white to any color
- Virtual color wheel with presets

DYNAMIC EFFECTS
- Static mode: selection of a pre-programmed static color
- Manual mode: manual adjustment of R, G, B and WW levels
- Auto mode: execution of internal programs with speed adjustment

CONTROL
- DMX RDM control
- DMX circuits: 1 / 2 / 4 / 5 / 6 / 10 / 15 / 17
- RDM for setup and visualization
- High-resolution black OLED display
- Master / Slave function
- Firmware upgrade possible - contact us

ELECTRONICS
- Electronic linear dimmer: 0 to 100%
- 4 dimming curves
- Electronic shutter
- Strobe function: 1 to 30 Hz
- No flicker when capturing video (flicker-free)
- PWM frequencies adjustable from 600 Hz to 25 kHz

ELECTRICS
- Power supply: 100 - 240 VAC / 50 - 60 Hz
- Max power consumption (@ 230 V): 150 W
- Power factor: > 0.92 (@ 230 V)
- Up to 14 spotlights on a 16 A line (@ 230 V)

PHYSICAL DATA
- Extruded aluminum construction
- Finish color: black
- Silent fan cooling
- Double lyre for hanging or floor mounting
- Data connectors: Amphenol XLR 3 + XLR 5 In / Out sockets
- Power connectors: Neutrik powerCON In / Out sockets
- IP20 rating
- Operating temperature: -10 to 45°C
- Dimensions: 316 x 404 x 317 mm
- Weight: 5.7 kg
DELIVERED WITH
- Mains power cable
- 24° lens
- 73° lens
- Filter holder

PROLIGHTS
ML-CR-166FC
