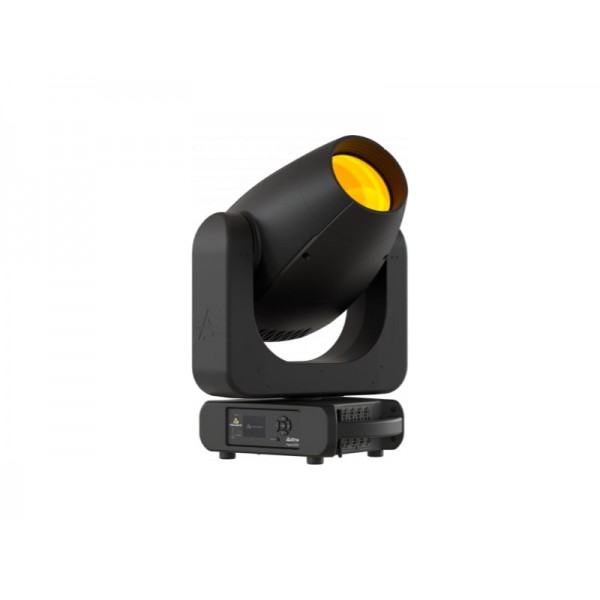

PROLIGHTS Lyre Beam/Spot/Wash Astra Hybrid330 LED 330 W zoom 3,5-52 ° (PROLIGHTS Beam/Spot/Washlight Astra Hybrid330 LED 330 W

Reference: ML-CR-691

The Astra Hybrid330 is a new-generation LED hybrid head. Its linear zoom from 3.5 to 52° enables beam, spot or wash effects. The beam is very homogeneous over the entire zoom range, offering sharp gobo projections in spot applications. The Astra Hybrid330 features CMY trichromacy, 3 color wheels, 2 gobo wheels, 2 superimposable prisms, a linear Frost and an animation wheel. Its control options are extensive: DMX, RDM, W-DMX + CRMX, Art-Net or sACN. Ultra-compact, silent and featherweight, this is an extremely complete projector that can replace a set of medium-power beam, spot and wash projectors, and is ideal for concerts, tours and events, as well as theater and TV.
You will get free shipping when cart value exceed of €700.00 Tax excl. with the carrier all, to a delivery address in France.
acute

We are sorry. This product is temporarily out of stock.

This means that, if you include this product in your cart, this product won't be deliverable before the missing product has been received in our supplies.

Nevertheless, concerning the rest of your order, we will send you immediately the products that we have.

  Shipping Policy

Shipping within 24 to 48 hours then delivery within 24 to 72 hours (if the product is In Stock)

  Return policy

Return under conditions


Astra Hybrid330 The Astra Hybrid330 is a new-generation hybrid LED moving head. Its linear zoom from 3.5 to 52° enables beam, spot or wash effects. The beam is very homogeneous over the entire zoom range, offering sharp gobo projections in spot applications. The Astra Hybrid330 features CMY trichromacy, 3 color wheels, 2 gobo wheels, 2 superimposable prisms, a linear Frost and an animation wheel. Extensive control options: DMX, RDM, W-DMX + CRMX, Art-Net or sACN. Ultra-compact, silent and featherweight, it's an extremely complete projector that can replace a set of medium-power beam, spot and wash projectors, and is ideal for concerts, tours and events, as well as theater and TV.

SOURCE
- 330 W high-brightness white LED source
- Color temperature: 7,000 K
- Luminous flux: 8,158 lumens (@ 3.5 °) / 11,684 lumens (@ 52 °)
- Illuminance: 97,996 lux @ 5 m @ 3.5 ° / 1,566 lux @ 5 m @ 52 °
- CRI : > 70 / > 90 with CRI filter on color wheel (CCT: 5,400 K)
- Source life: > 30,000 h

OPTICAL SYSTEM
- Linear motorized zoom: 3.5 to 52 °
- Lens diameter : 140 mm
- Anti-reflective HD lens with achromatic coating
- Motorized focus

COLORS
- CMY trichromacy on 3 progressive wheels
- 9 dichroic colors + CTO 2,400 K + CTO 3,200 K + IRC 90 distributed over the 3 trichromy wheels

DYNAMIC EFFECTS
- Wheel of 11 fixed gobos
- Wheel of 8 indexable and interchangeable rotating gobos
- Rotating gobos Ø: 20 mm / Image Ø: 16 mm / Thickness: 3 mm
- Bidirectional, variable-speed, rotating 8-facet circular prism
- Bidirectional, variable-speed, rotating 6-facet linear prism
- The 2 prisms are independent and can be superimposed
- Linear Frost filter from 0 to 100%
- Bidirectional, variable-speed animation wheel
- Control of all effects in 16-bit

CONTROL
- Control protocols: DMX RDM, W-DMX + CRMX, Art-Net, sACN
- Ethernet network always active, even if fixture power is cut
- Number of DMX channels: 29
- Lumen Radio Timo Fx DMX/RDM receiver compatible with W-DMX and CRMX
- RDM for visualization and setup
- High-resolution color LCD display with Autoflip function
- Battery-powered display for mains-free setup
- Possible firmware update via optional UPBOX2 update box or via USB

ELECTRONICS
- Electronic linear dimmer: 0 to 100%
- 4 dimming modes
- 16-bit dimmer control
- Electronic shutter
- Electronic strobe effect from 1 to 30 Hz
- No flicker when capturing video (flicker-free) - PWM frequency adjustable from 600 Hz to 50 kHz

ELECTRICS
- Power supply: 100-240 VAC, 50/60 Hz
- Power consumption: 517 W
- Power factor: > 0.98
- Up to 4 spotlights on a 16 A line

PHYSICAL DATA
- Aluminum body and high-resistance polycarbonate shell
- Black finish (RAL 9004)
- Movements: Pan 540 ° / Tilt 270 °
- 16-bit motion resolution
- Automatic repositioning in the event of impact
- Pan and Tilt locking for transport and maintenance
- Ergonomic handles for transport and handling
- Liquid cooling and silent ventilation
- Power supply connectors: powerCON TRUE1 In/Out Neutrik sockets
- DMX connections: 5-pin In/Out Amphenol sockets
- Network connections: 2 etherCON Neutrik sockets
- USB port for firmware update
- Rating: IP20
- Operating temperature: - 10 to 45 °C
- Dimensions: 411 x 638 x 244 mm
- Weight: 21.6 kg
- Warranty: 2 years
DELIVERED WITH
- 1.5 m power cable (without mains plug)
- 2 Omega ¼-turn decks

PROLIGHTS
ML-CR-691
